Concrete Batching Plant

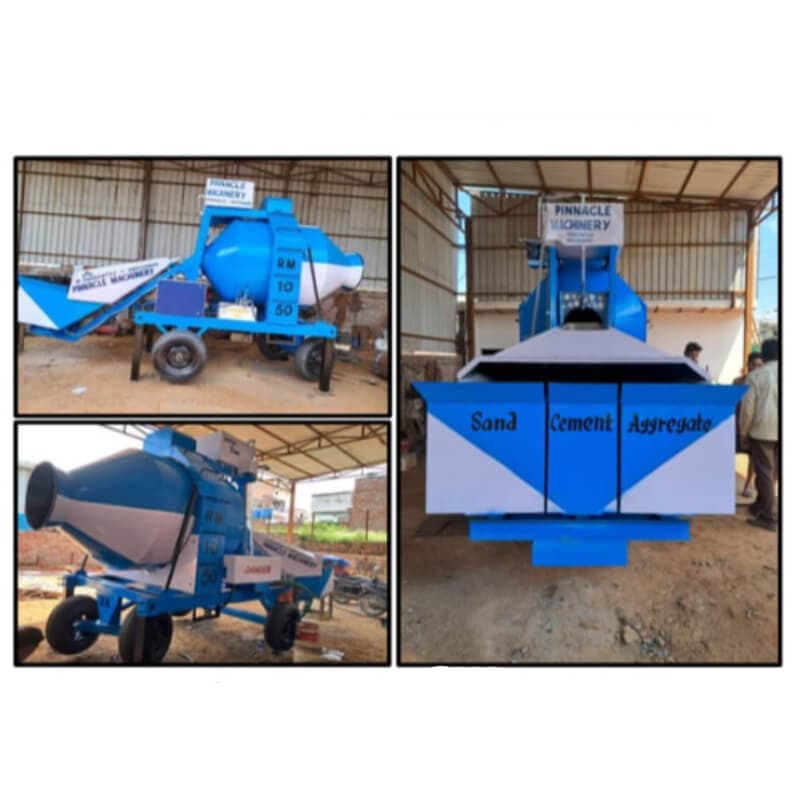

Concrete Mixers-Mini Batching Plant Model-RM 1050
₹3,50,000.00
Semi-automatic mini batching plant with 1050L hopper and 750L batch capacity. Produces 12-15 Cu.m/hour with 12.5 HP main motor, three-bin hopper with load cells, and integrated printer control panel.
In Stock Free Shipping 1 Year Warranty
Technical Specifications
ModelRM 1050
Hopper Capacity1050 Litres
Batch Capacity750 Litres
Mixer Capacity/Hour12-15 Cu.m/Hr
Main Driver Motor12.5 HP, 3 Phase Branded
Water Tank Capacity300 Litres
Wheels4 nos, 6-16 with bearing 63011
Control Panel with PrinterSemi Automatic
Water Pump Motor0.5 HP for feeding & 1 HP for Discharge
Hopper Type / Load CellThree Bin Type Hopper with 3 Load Cell
Drum Length / Drum Diameter2000 mm / 1400 mm
Drum Blade / Discharge Blade10 mm / 8 mm
Jack LevellingPin Type / Screw Type (4 Nos)
Hydraulic Jack Rod50 mm
Dimension (Feet)L 17.5 * W 8 * H 8.5
WeightApprox 3500 KGs
